Author Topic: CF82E25 Rev 5 - Schematic  (Read 5135 times)

horizonsound

  • Sr. Member
  • ****
  • Posts: 402
  • Karma: +26/-0
    • Melbourne, Australia
    • Horizon Sound
CF82E25 Rev 5 - Schematic
« on: November 27, 2021, 08:31:12 PM »
Hey all,

Does anyone have a copy of the CF82E25 Rev 5 (main output buffers) schematic?
I've only got the one from the G series manual, and the schematic is missing from my E series hard copy.

Thanks in advance.

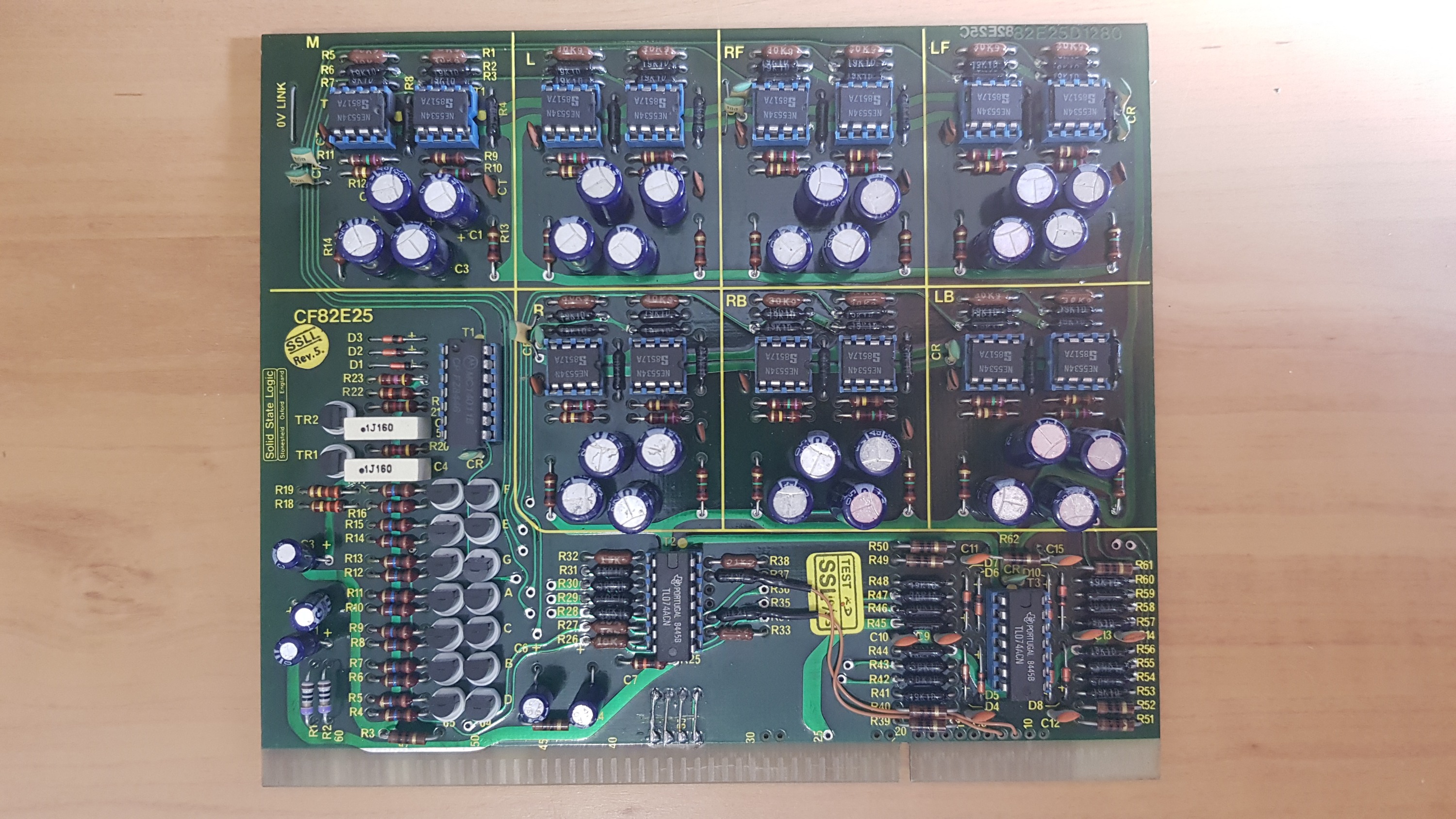

Picture below.

Anthony.



amillar

  • Full Member
  • ***
  • Posts: 190
  • Karma: +15/-0
    • United Kingdom
Re: CF82E25 Rev 5 - Schematic
« Reply #1 on: November 28, 2021, 09:38:31 PM »
Hi Anthony,

Which version of the diagram have you got in the G series manual? The one in my G series manual  is rev 6, and the only difference between that and rev 5 is that the output resistors in the output amps were 75R at rev 5 and are 33R at rev 6. I wouldn't have thought we'd have changed it after that?

Thanks,

Andy
co-designer and project manager G series analogue 1987
channel strip designer J series 1992-93
design "caretaker" 4000/6000 1985-93
analogue team leader ARC/Bertha 1988-92

horizonsound

  • Sr. Member
  • ****
  • Posts: 402
  • Karma: +26/-0
    • Melbourne, Australia
    • Horizon Sound
Re: CF82E25 Rev 5 - Schematic
« Reply #2 on: November 29, 2021, 07:06:18 AM »
Hey Andy,

Thanks for the reply.

Below are the only schematics I found for the 25 card, which are from the widely available G manual scan.

Would love to get a copy of what you have, if it is more similar to the card I have in hand

Anthony.
« Last Edit: November 29, 2021, 07:08:15 AM by horizonsound »

walrus

  • Full Member
  • ***
  • Posts: 172
  • Karma: +13/-0
    • London, UK.
Re: CF82E25 Rev 5 - Schematic
« Reply #3 on: November 29, 2021, 10:58:57 AM »
Here are the Rev 5 and Rev 6....
Kevin.

amillar

  • Full Member
  • ***
  • Posts: 190
  • Karma: +15/-0
    • United Kingdom
Re: CF82E25 Rev 5 - Schematic
« Reply #4 on: November 29, 2021, 11:05:44 AM »
Many thanks Kevin, got there before I did! That's interesting that hybrids were added to replace the output buffers in 1990, I'd obviously completely forgotten that... (It's nothing to do with G series, I'm not quite sure why that was done, I guess it was done as part of the 8k work).
co-designer and project manager G series analogue 1987
channel strip designer J series 1992-93
design "caretaker" 4000/6000 1985-93
analogue team leader ARC/Bertha 1988-92

horizonsound

  • Sr. Member
  • ****
  • Posts: 402
  • Karma: +26/-0
    • Melbourne, Australia
    • Horizon Sound
Re: CF82E25 Rev 5 - Schematic
« Reply #5 on: November 29, 2021, 07:19:56 PM »
Thanks guys for this information!

I'd found another one in the 6K manual which is very similar, but for an 82E125.
Closer to the Rev 5 vintage with the 75ohm resistors.

Anthony.

amillar

  • Full Member
  • ***
  • Posts: 190
  • Karma: +15/-0
    • United Kingdom
Re: CF82E25 Rev 5 - Schematic
« Reply #6 on: November 29, 2021, 09:56:07 PM »
Ok, I'll see your hand drawn 125 circuit and I'll raise you a CAD 195 circuit from my 6K manual with 33R resistors! :D
(I have a feeling that when Trevor Stride called the 6k version a 125 he didn't realise that there was already a card called a 125, so we renamed it a 195.)

Maybe by the time this thread's finished we'll have a complete set between us...

Cheers, Andy


co-designer and project manager G series analogue 1987
channel strip designer J series 1992-93
design "caretaker" 4000/6000 1985-93
analogue team leader ARC/Bertha 1988-92
